Miniature Infra-Red Illumination

  • Waterproof Aluminium Housing
  • Indoor or Outdooe
  • IP57 Rating
  • Auto on/off via CDS light level sensor
  • Range 10 metres
  • High Quality, Affordable
  • Discrete
  • Wall or ceiling mount
Model IRL
Input Voltage 12V DC, 450mA (+/- 10%)
Distance 10 Metres, H, V Angle 70 degrees
Power Consumption 2.0 Watts
Power On CDS Auto Control
LED 28 Unit Infra-Red LED
Window Heat-Resistant Glass
Status Under 10 Lux by CDS
Wavelength 840nM
Operation Temperature -20 C to 60 C
Dimensions Dia. 49mm x D 60mm (175 grams)

INFORMATION:
  • An effective way of discreetle illuminating an area where monochrome or IR colour cameras are operating in the dark or very low light, affordable mini IR lamp for internal or external use.
  • Auto CDS control light level sensor for 24-hour detecting and monitoring.
  • LED tange is 10 metres (approximate).

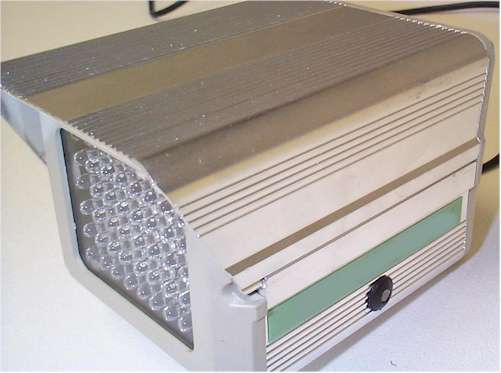

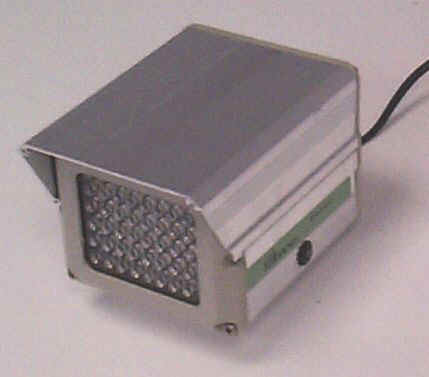

infra red light source

Fully cased IR light source suitable for CCTV applications. The unit measures 10x10x150mm, is mains operated and contains 54 infra red LEDs. Designed to mount on a standard CCTV camera bracket.

The unit also contains a daylight sensor that will only activate the infra red lamp when the light level drops below a preset level.

The infrared lamp is suitable for indoor or exterior use, typical useage would be to provide additional IR illumination for CCTV cameras.
